AL01264 – 90HP
The AL01264 is a compact 90HP 45 degree gearbox designed for driveline direction changes.
Note: Ensure the Torque rating is suitable for your application.
PRODUCT SPECS
| Part Number | AL01264 |
| Model | B45-02-1 |
| Power rating | 90 HP @ 540 RPM |
| Torque | 540 Nm |
| Shafts | 1 3/8 6 spline |
| Gears | Helical |
| Bearings | 6310 |
| Unit Weight – Dry | 16.5 Kg |
| Lubricant |
SAE 90 EP Gear Oil Rec volume = 0.5lt |

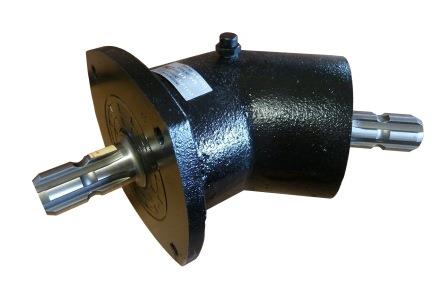

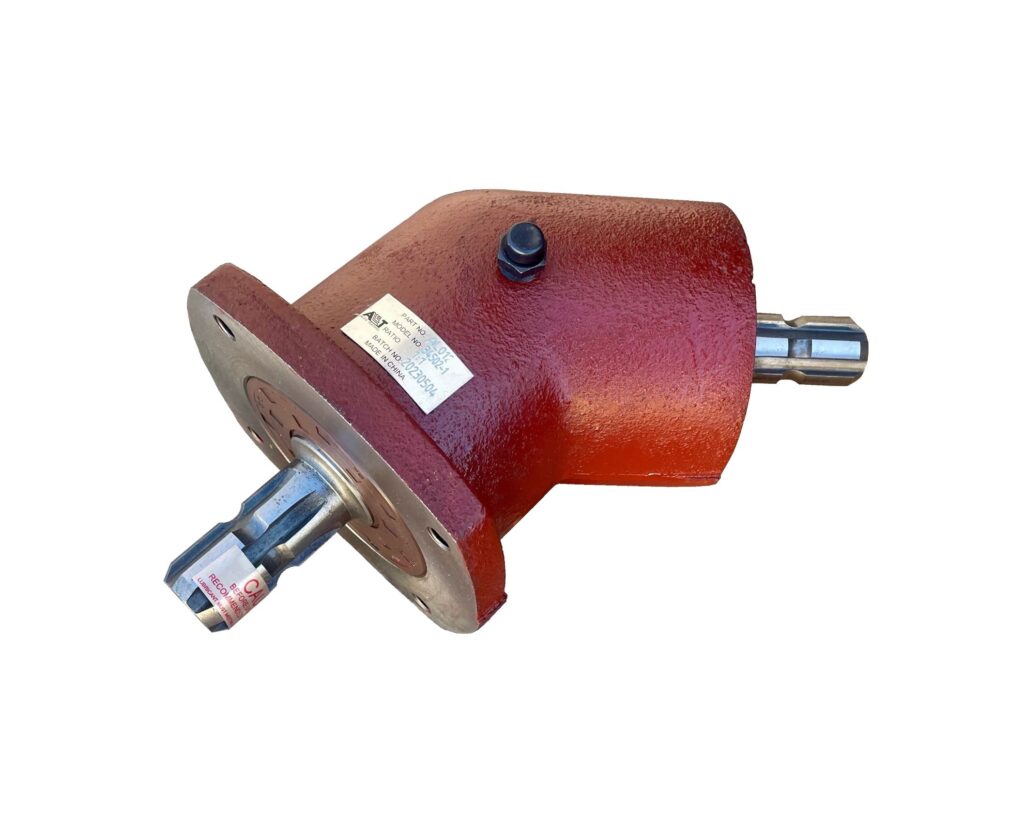

PRODUCT PHOTOS

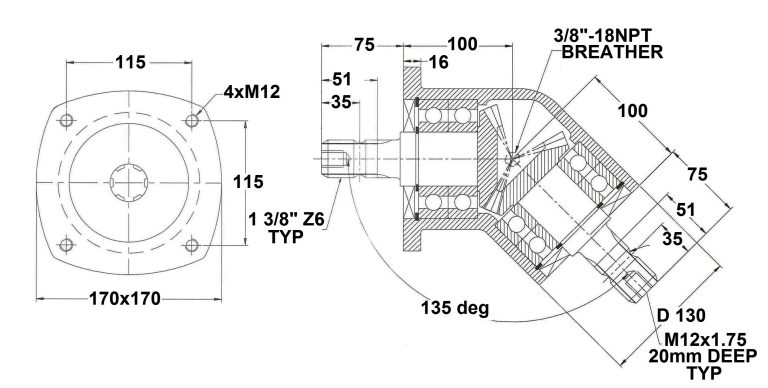

Click on drawing to enlarge.
