A11

The A11 gearbox is available with various gear ratios suitable for a wide range of applications, including, auger drives, field bins, mowers, pump drives and other Agricultural or Industrial applications.

A sturdy SG iron housing, combined with high quality shaft and gear materials make the A11 a reliable performer.

Average dry weight = 25Kg.

Shaft size = 1 3/8Z6 spline. (540 PTO)

Input shaft = Z

HP ratings vary with the gear ratio and input speed.  (540 or 1000 rpm.)

Oil capacity = 1.8 lt – SAE 90 EP gear oil.

PRODUCT SPECS

Part No Model Input Output
Ratio R.P.M HP KW NM NM RPM Rotation
AL01924 A11100 1:1 540 90 66 1171 1171 540 C
1000 135 99 948 948 1000
AL01925 A11192 1:1.92 540 58 43 755 393 1037 C
1000 90 66 632 329 1920

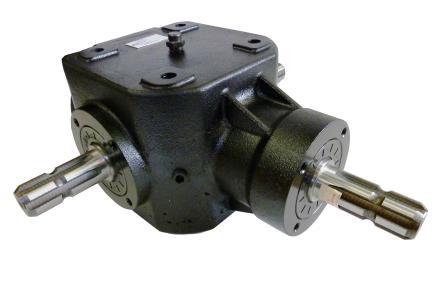

PRODUCT PHOTOS

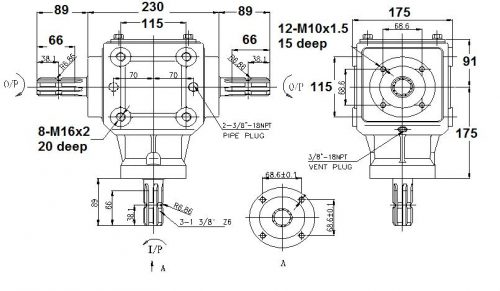

Click on the drawing below to enlarge.

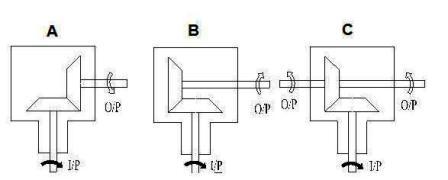

The standard A11 boxes are supplied with a C rotation.
