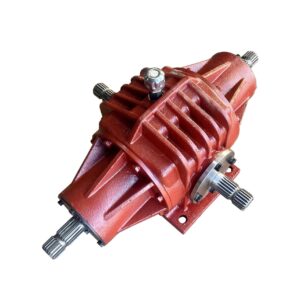

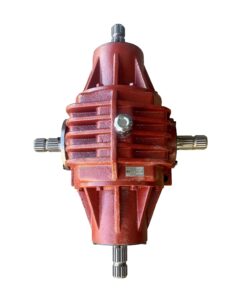

A400

The A400 is a 4 shaft  gearbox designed for Agricultural applications with high HP requirements.

Featuring a sturdy SG iron housing & high quality materials.

Average dry weight = 123 Kg.

Shaft size = 1 ¾ Z20 spline. (1000 rpm PTO)

Input shaft = Z

HP ratings vary with  input speed.  (540 or 1000 rpm.)

Oil capacity = 11L (approx.) – SAE 90 EP gear oil. Fill to sight glass.
