COMPACT SERIES UNDERBODY CYLINDERS
The compact range of underbody cylinders offer a stroke range between 800mm and 1500mm while maintaining a minimal closed length.

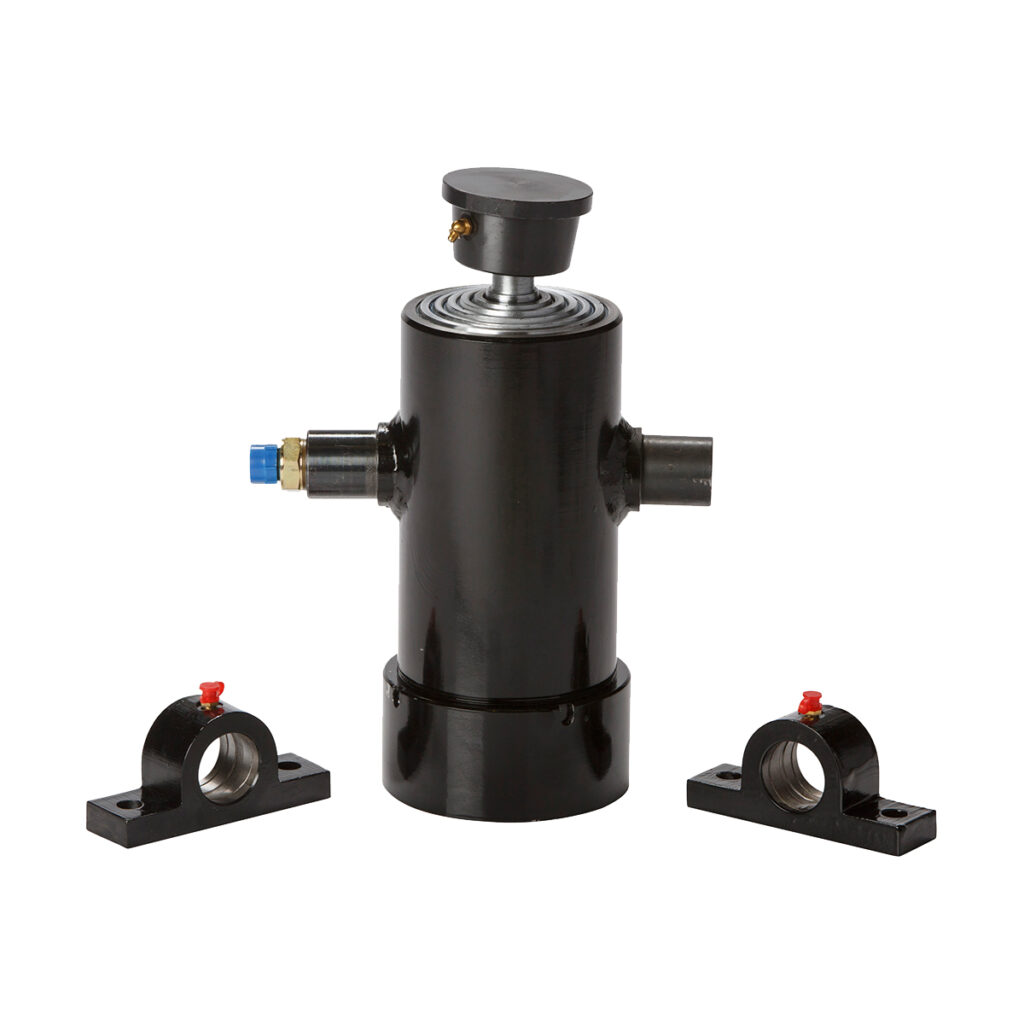

Cylinders are supplied with a weld on ball mount cap, two trunnion mounts and a hose burst valve with 1/2″ Gas thread.
PRODUCT SPECS

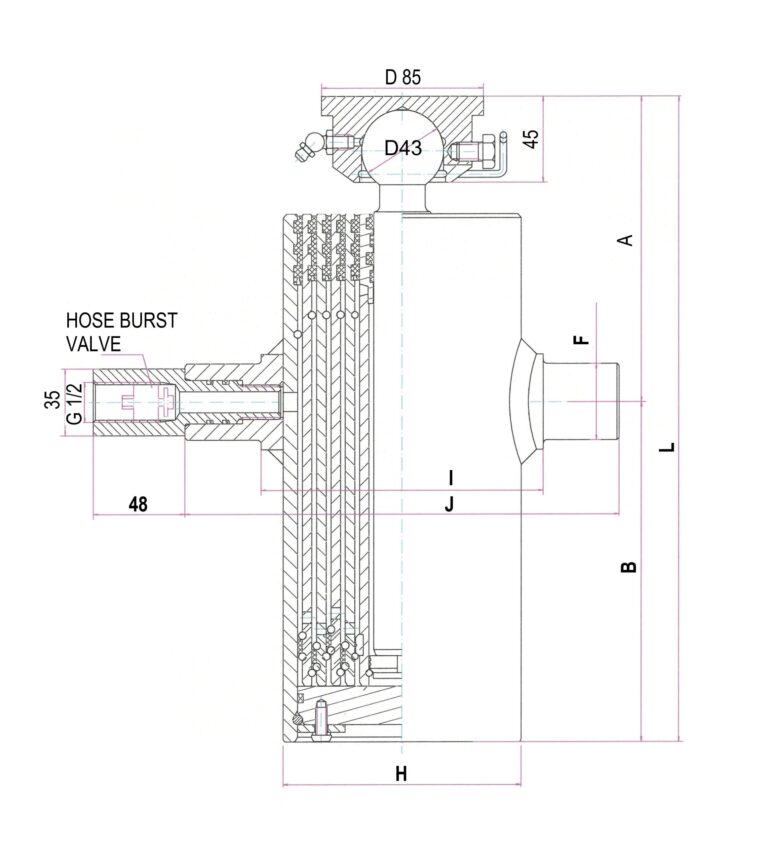

| Part Number | Extension | Stroke | Capacity ton | Volume litres | Weight Kg | A | B | F | H | I | J | L |
| AL00147 | 4 | 800 | 5 | 3.2 | 20 | 155 | 213 | 40 | 112 | 135 | 215 | 368 |
| AL00148 | 6 | 850 | 6 | 3.8 | 21 | 160 | 156 | 40 | 125 | 150 | 228 | 316 |
| AL00149 | 6 | 1000 | 6 | 4.2 | 22 | 160 | 181 | 40 | 125 | 150 | 228 | 341 |
| AL00150 | 6 | 1250 | 9 | 7.7 | 32 | 160 | 222 | 45 | 141 | 165 | 243 | 382 |
| AL00151 | 6 | 1500 | 9 | 8.7 | 36 | 160 | 265 | 45 | 141 | 165 | 243 | 425 |
