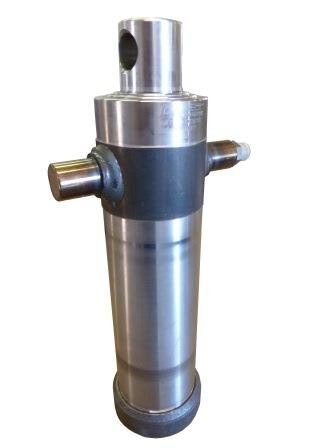

Hole end top mount cylinders
PRODUCT SPECS & PHOTOS
| Cylinder specifications | ||||||||||||
| Part No | Stroke mm | No of Stages | Extension diameter in mm | Capacity @ 100 bar in Kg | Weight | Capacity | ||||||
| 46 | 61 | 76 | 91 | 107 | 127 | 146 | Kg | lt | ||||
| AL00099 | 1050 | 3 | – | Y | Y | Y | – | – | – | 5000 | 33 | 5.8 |
| AL00096 | 1300 | 4 | – | Y | Y | Y | Y | – | – | 8000 | 35 | 9.0 |

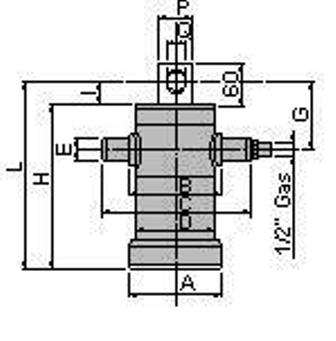

| Cylinder Dimensions | |||||||||||
| Part No | Dimensions of cylinders in mm | ||||||||||
| A | B | C | D | E | G | H | I | L | P | Q | |
| AL00099 | 130 | 135 | 215 | 114 | 35 | 108 | 430 | 33 | 463 | 60 | 31 |
| AL00096 | 145 | 150 | 230 | 127 | 40 | 108 | 405 | 33 | 438 | 60 | 31 |
