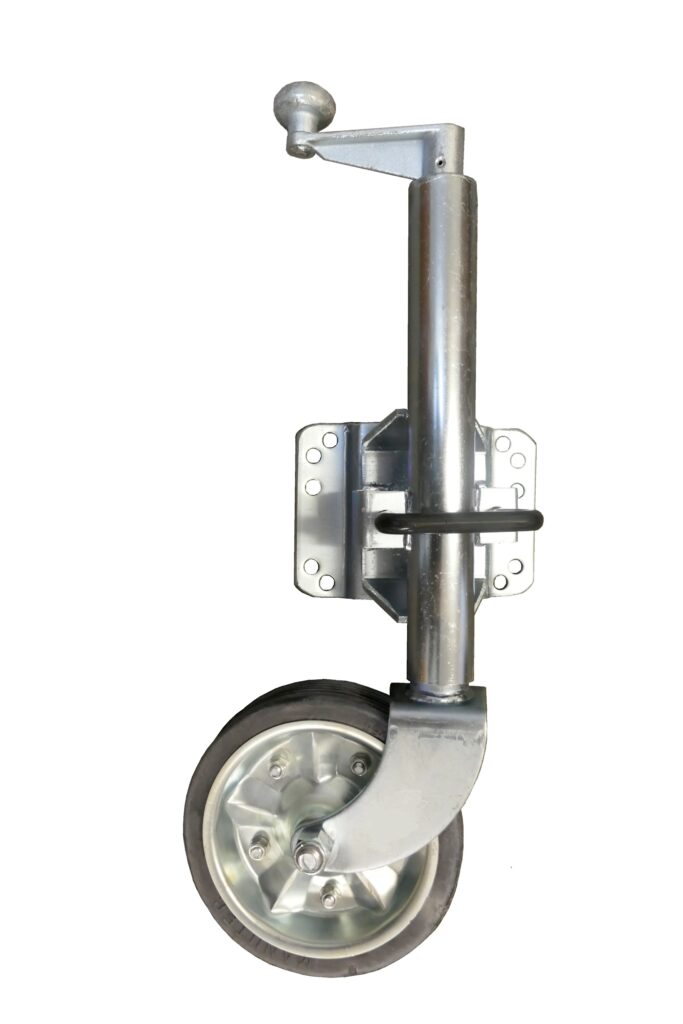

AL01353 JOCKEY WHEEL 750 Kg
The AL01353 jockey wheel offers increased capacity with a heavy duty locking pin swivel bracket and an 8″ x 2″ tyre with a zinc plated steel centre and roller bearings.
PRODUCT SPECS
| Part number | AL01353 |
| Model | JW4ZUBHD |
| Tyre size |
200 mm x 55 mm |
| Static load rating in Kg | 750 Kg |
| Screw stroke in mm +- 10mm | 225 mm |
| Unit Weight | 9.6 Kg |
| Winding method | Top wind |
| Mount | Swivel – Bolt on or weld |
| Finish | Zinc plated |
| OPTIONAL U BOLTS TO SUIT | |
| 75mm drawbar | AL01350 |
| 100mm drawbar | AL01351 |
