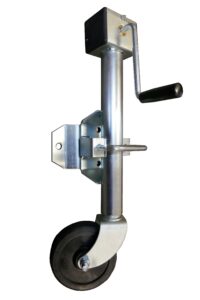

AL01359 JOCKEY WHEEL 500Kg

The AL01359 is a side wind swivel mount jockey wheel designed for use in tight locations where a normal top wind jack will not fit. Locations with limited space like trailers, campers or caravans with gas bottles or tool boxes mounted on the draw bar restricting the space to wind a conventional jockey wheel. The side wind allows for clear movement and the gearbox reduces the winding force required to raise the drawbar.



PRODUCT SPECS

Part numberAL01359
ModelJW3
Wheel size Diameter x Width150mm x 50mm
Outer tube size and shape48 mm round
Static load rating in Kg500 Kg
Screw stroke in mm +- 10mm225 mm
Unit Weight7.5 Kg
Winding methodSide wind
MountSwivel. Bolt or weld on
FinishZinc plated
