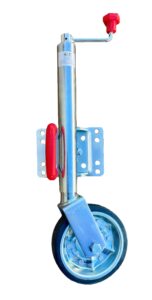

AL02443 JOCKEY WHEEL 455 KG
The AL02443 swivel mount jockey wheel is a very popular choice for heavier trailers and allows for easy retraction of the wheel with minimal winding.
PRODUCT SPECS
| Part number | AL02443 |
| Model | JW8 |
| Wheel size Diameter x Width | 200mm x 50mm rubber |
| Outer tube size and shape | 78mm round |
| Static load rating in Kg | 682 Kg |
| Screw stroke in mm +- 10mm | 240 mm |
| Unit Weight | 7.3 Kg |
| Winding method | Top wind |
| Mount | Swivel – Bolt or weld on |
| Finish | Zinc plated |
| Ground to centre of mount closed. | 330mm |
| OPTIONAL U BOLTS TO SUIT | |
| 75mm drawbar | AL01350 |
| 100mm drawbar | AL01351 |
