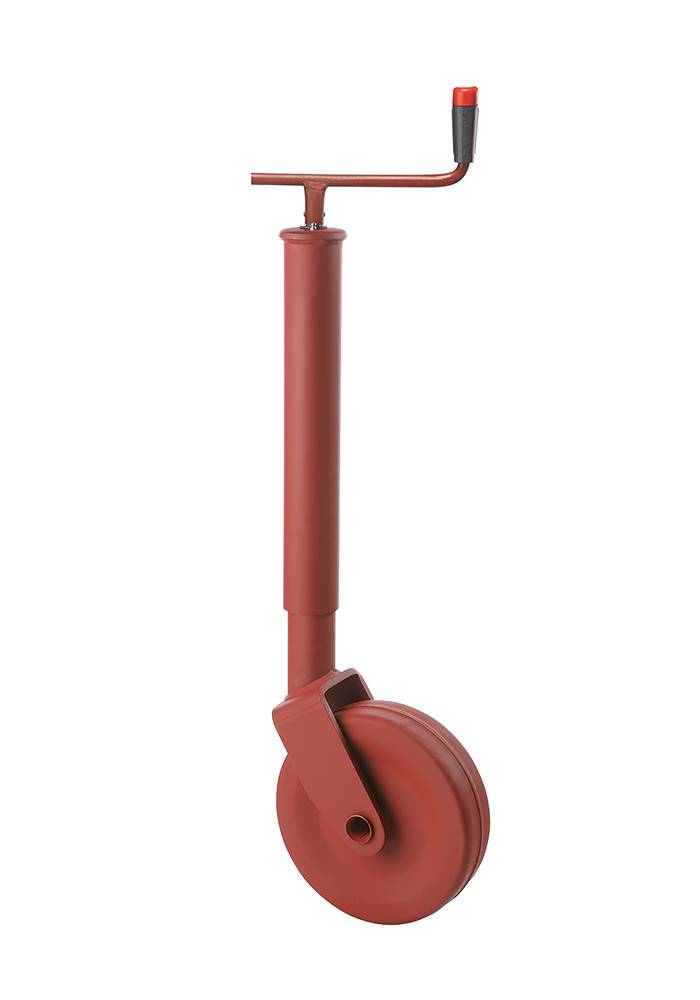

AL02775 JOCKEY WHEEL 1000kg
The AL02775 is a quality Italian made product with a steel wheel, designed for agricultural and industrial applications
PRODUCT SPECS
| Part number | AL02775 |
| Model | FO 270 |
| Wheel size Diameter x Width | 275mm x 70mm steel |
| Outer tube size and shape | 70mm round |
| Static load rating in Kg | 1000 Kg |
| Screw stroke in mm +- 10mm | 300mm |

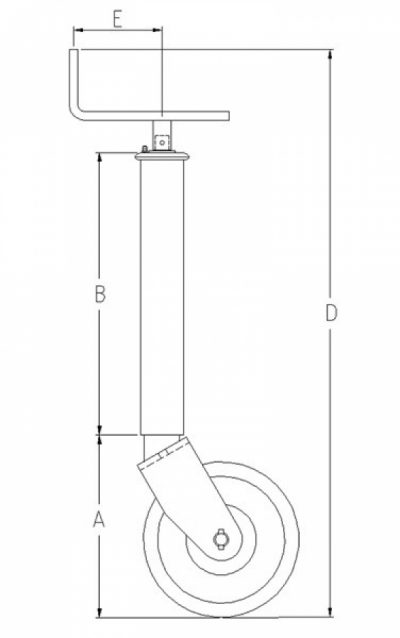

| A |
305mm |
| B | 460mm |
| D closed | 910mm |
| E | 130mm |
| Unit Weight | 12.5Kg |
| Winding method | Top wind |
