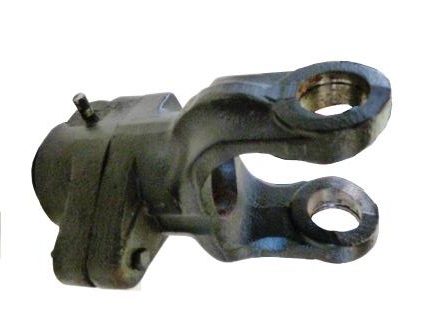

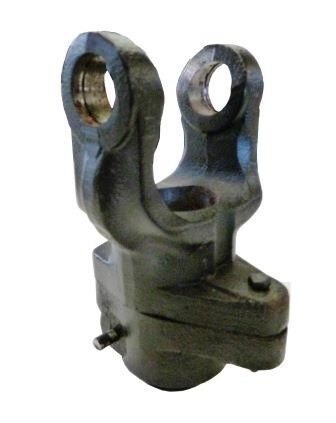

Shear bolt clutch


This safety device avoids the transmission of the rotational motion through the agricultural machine due to overloading, by the help of a bolt that shears off while the assembly of the hub and yoke are kept together by a ball bearing allowing the two parts to rotate independently.

This device is fitted to the implement side of the PTO shaft.

Aline Trading present a select range of products suitable for popular applications. Other items are available to order for OEM applications.

PRODUCT SPECS

Part No Model Torque Nm Input Output
AL00307 PK4 780 T4 YOKE 13/8Z6 QR
 AL00308 PK6 1050 T6 YOKE
13/8Z6 QR
 AL00326 PK8 2160 T8 YOKE
13/8Z6 QR
