PTO COVERS AND CONES


The Safety cover on a PTO shaft is a highly important safety feature and must be checked regularly for damage. If excessive wear or damage is found the shaft should be put out of service until a replacement cover is fitted.

Aline Trading keep a range of covers in stock to suit our AKSAN PTO shafts. Each cover is supplied with bearings to suit your shaft. Our covers are supplied at maximum length and can be easily trimmed to suit your required length.

PRODUCT SPECS

Complete PTO Covers
Part NoSeriesLength X – X
AL00005T1610
AL00336T2 & T4960
AL00337T2 & T41660
AL00344T6 & T8760
AL00338T6 & T81160
AL00340T6 & T81260
AL00343T6 & T81660
AL02817T6 WIDE ANGLE960
AL00384T8 WIDE ANGLE1160
AL00006T91610

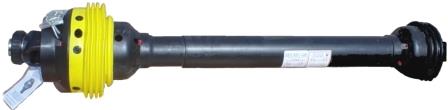

AL02817 – T6 wide angle cover shown below.

PTO Safety Cover Bearing Sets
Part No Series
AL00334 T2
AL00568 T4
AL00606 T6
AL00605 T8

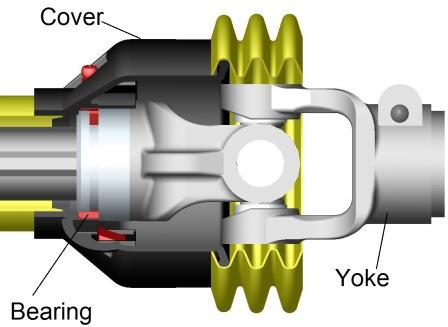

The PTO safety cover bearing is a split, clip style plastic bearing that connects the safety cover to the PTO shaft. Each shaft will use 2 bearings with different bore size.
PTO Machine Cones
AL00327 Small
AL00330 Large with I/O

PTO Machine cones are designed to be attached to the machine / gearbox being driven by the PTO shaft to give full coverage of the moving joint.

The covers are supplied undrilled so you can drill to suit the gearbox being used.

Aline Trading stock 2 standard sizes.

AL00327 – Round. For small to medium sized PTO shafts used in a fixed position. i.e.; connecting between 2 fixed position gearboxes.

AL00330 – Oval. Suits most sizes of PTO shafts. Used for input drive situations where various angles are encountered. I.e.; tractors to Slasher or Auger drive.

PRODUCT PHOTOS

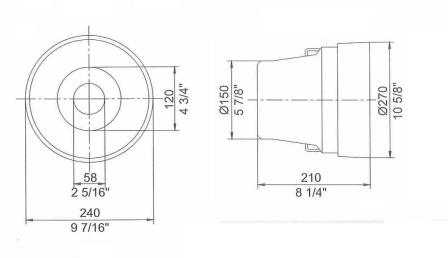

AL00327 shown below.

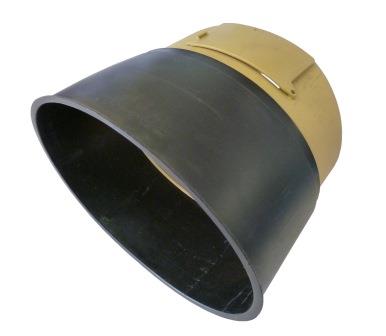

AL00330 Shown Below.
