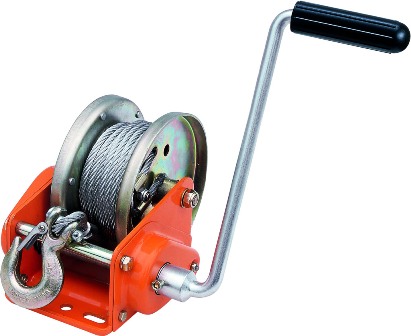

RBW2500

The RBW2500 is a high quality brake winch and a proven performer typically fitted on larger applications like grain augers and irrigation pumps where additional safety and control are required.

Features include:

– Compact design requiring minimal space.

– Very low torque required for easy operation.

– Formed reinforcements in frame for added frame strength.

– Internally lubricated bushing and pinion shaft bearing for long life and ease of operation.

– Heat treated one piece gears.

– Gearbox and brake all sealed by strong steel cover to avoid dust and rain.

– Safety ratchet gear to prevent slipping.

– Load activated brake. Standard.

– Brake is completely automatic and will hold the load in any position. Recoiling is impossible.

Aline trading presents the RBW2500 in 3 standard versions as listed below.
