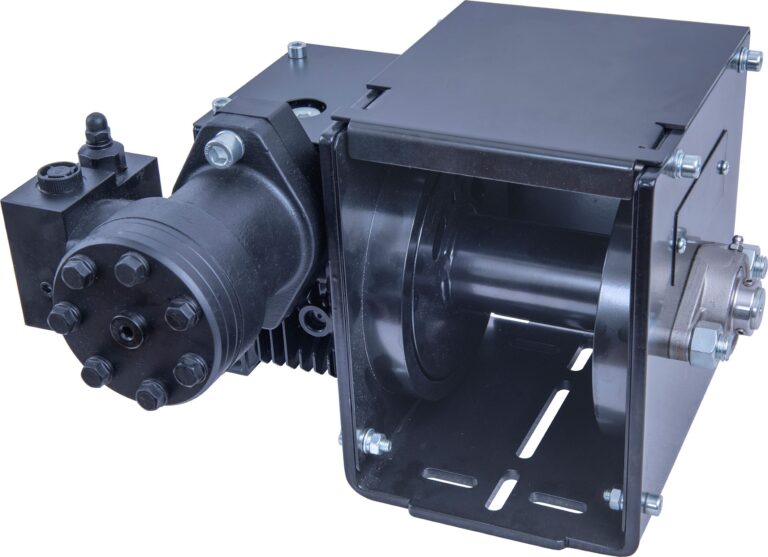

RYW2.5
The RYW2.5 is a 2500 lb hydraulic winch designed for use on grain augers and other applications.
Features include:
– Hydraulic drive via a 20:1 worm drive gearbox.
– Reinforced frame.
– High performance motor.
– Supplied with 20m cable & safety hook.
PRODUCT SPECS
| Part Number | AL02733 |
| Model | RYW2.5 |
| Rated line pull | 2500lb (1135kg) |
| Gear reduction ratio | 20:1 |
| Operation Pressure | 6.89 Mpa |
| Max Oil Flow | 19.3 Lpm |
| Hydraulic Displacement | 195ccm / rev (11.19 cu” / rev) |
| Drum size diameter | 60mm |
| Drum size width x diam | 154mm x 114mm |
| Cable diameter | 6.35mm – 31Kn Breaking Strength |
| Cable length | 20m |
| Line Speed ( drum 1st layer) | 3.5m/min at 5.1GPM. |
| Shipping weight | kg |

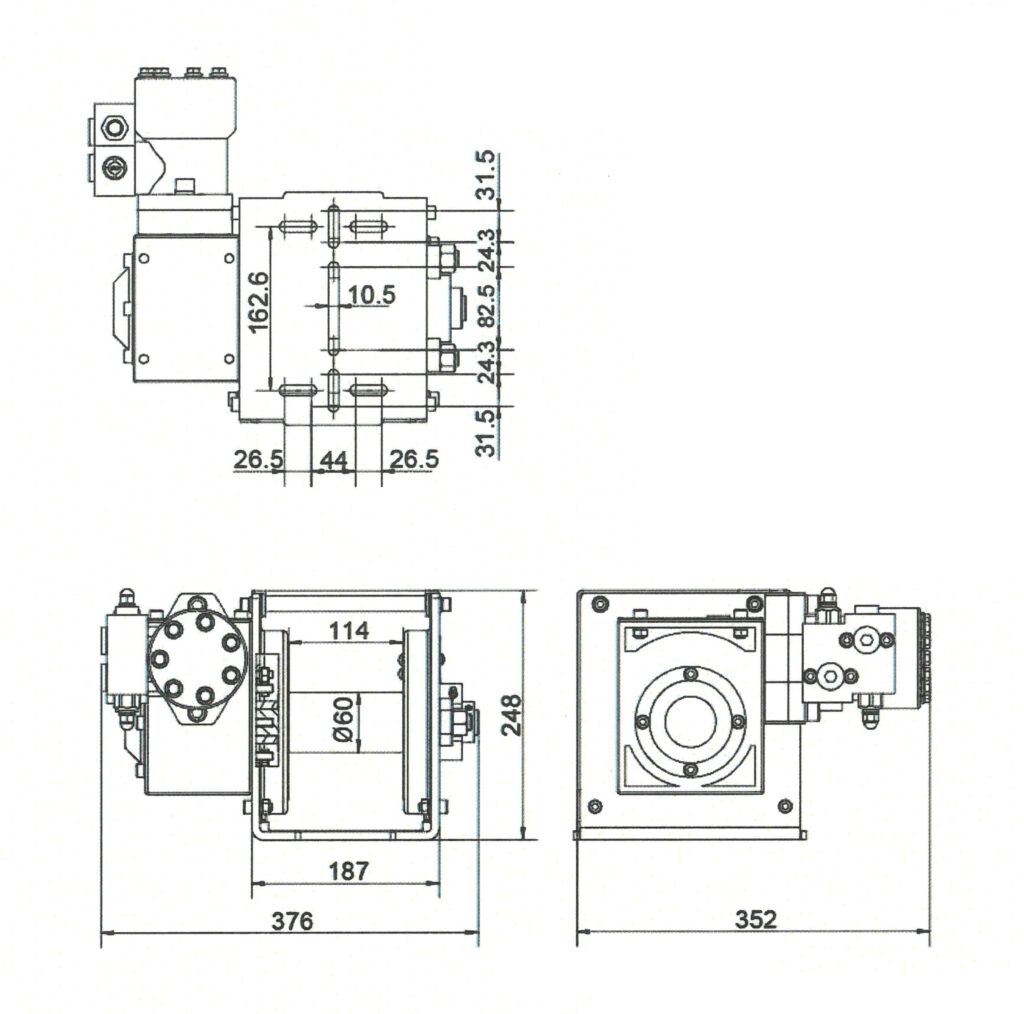

| Dimensions LxWxH | 376mm x 352mm x 248mm |
| Static brake torque | 200 Nm |
| Input / Output port | 3/8″ |
