Top Link Long – AL01974
The AL01974 Is a long version of our popular standard length heavy duty ratchet adjustable top link. It is suitable as an adjustable link on custom made agricultural and industrial machines.
Features:
– 12 mm thick clevis yokes.
– Metric M34 x 6 screw thread.
– Heavy duty outer tube and handle assembly.
– Greasable.

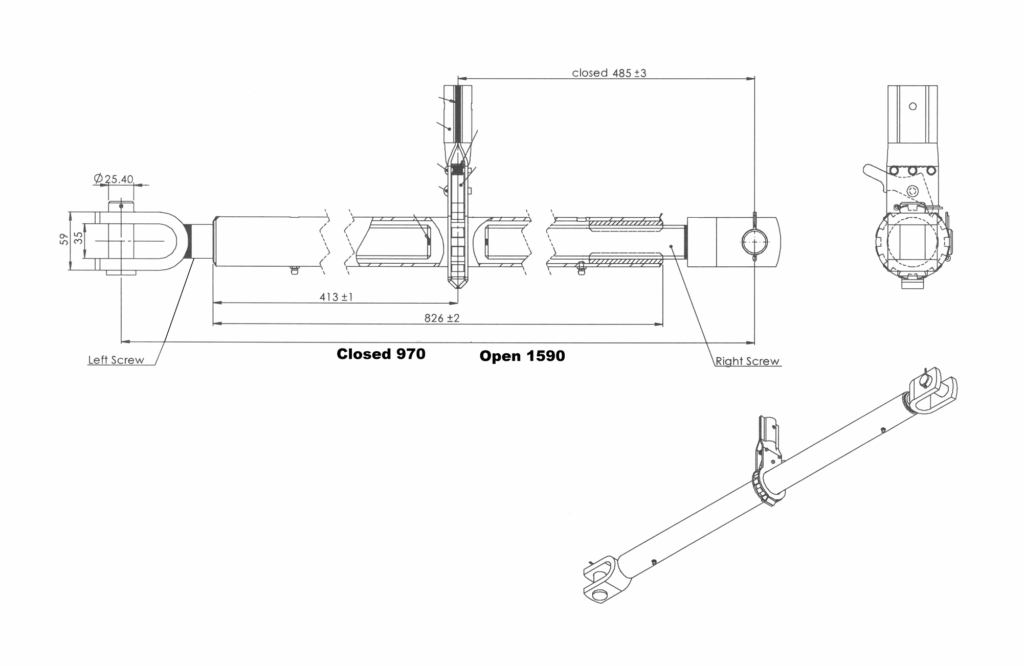

PRODUCT SPECS
| Part No | AL01974 |
| Unit Weight | 13.5 kg |
| Closed Length | 970mm + – 6 mm |
| Open Length | 1590mm + – 6mm |
| Clevis Pin Diameter | 25.4mm ( 1″ ) |

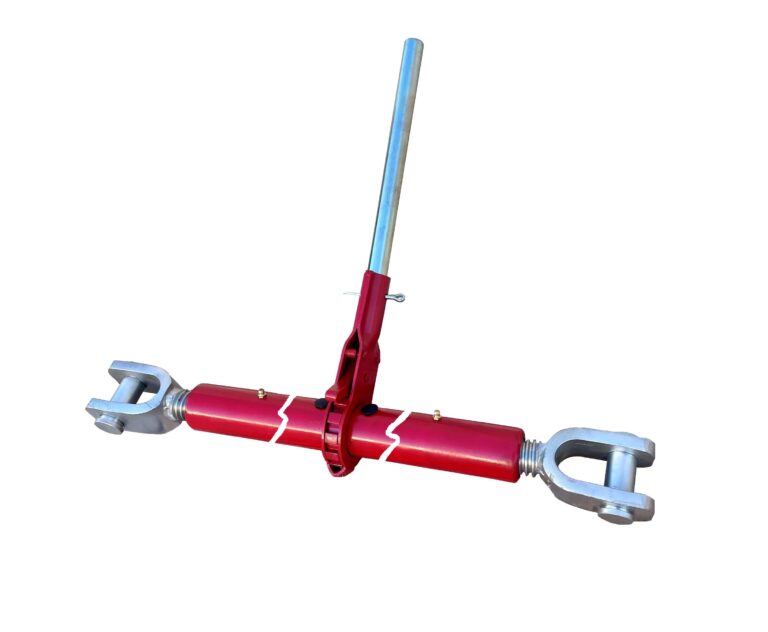

PRODUCT PHOTOS
