CANOPY VENTS
Aline Trading P/L present a range of vents designed for use on Trailers, Caravans, Motor Homes & Canopies.
PRODUCT SPECS & PHOTOS

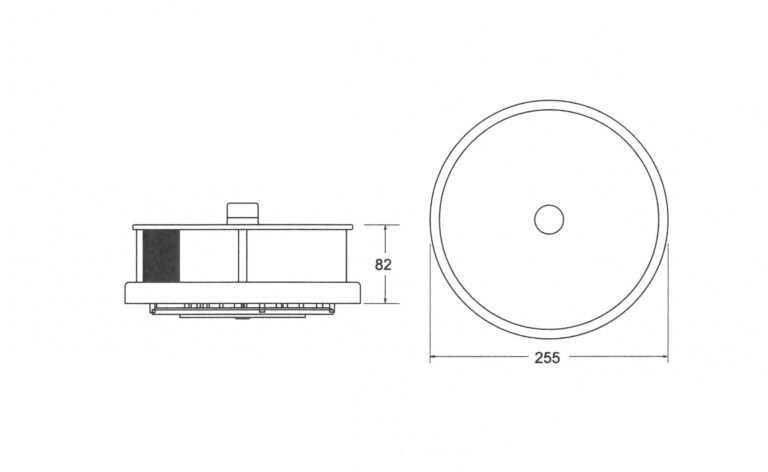

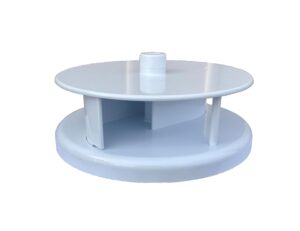

| ROTARY VENT | |
| Part No | AL00830 |
| Material | White PVC. |
Rotary Vents also known as “Whirly Birds” or “Spinning Vents” are made from PVC and are white in colour.

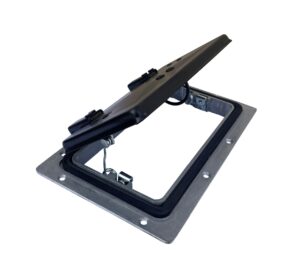

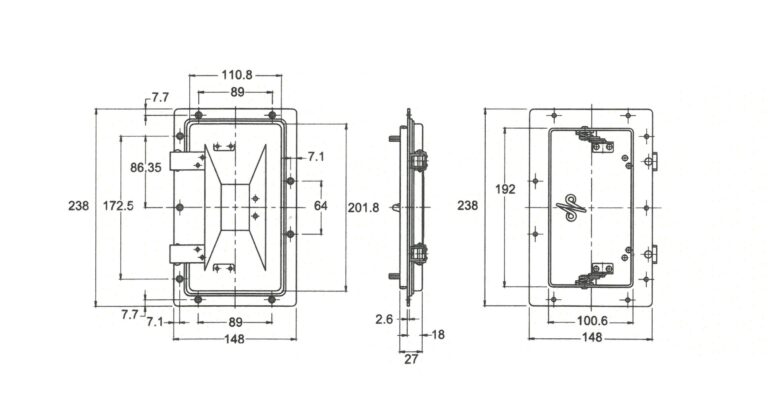

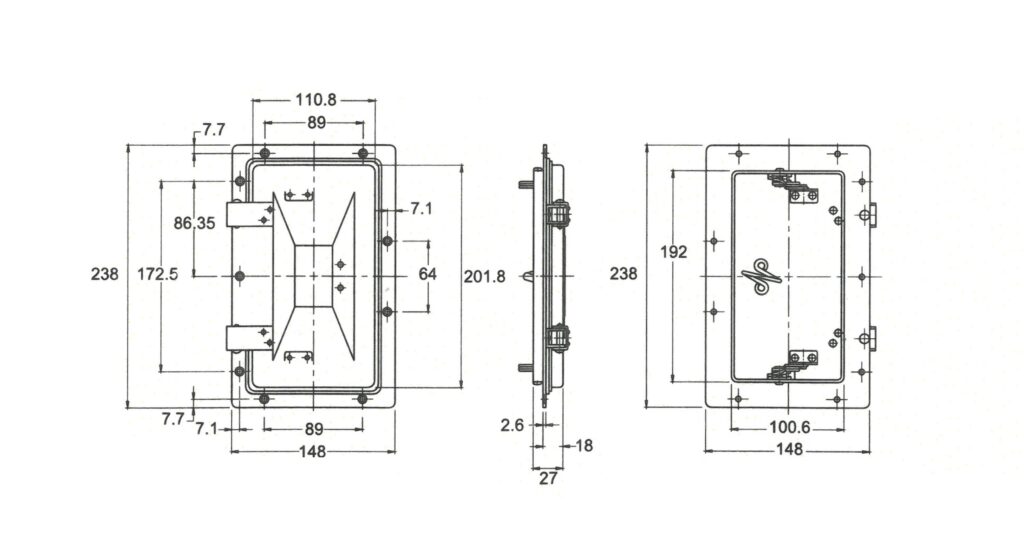

| POP UP VENT | |
| Part No | AL00831 |
| Material | Aluminium fixing base and black powder coated steel hatch. |
Great for all kinds of trailers. These are not an intake vent and should be mounted facing backwards to the direction of travel. For intake vents we would recommend our muller vents or rotary vents.
Features:
Aluminium fixing base.
Black powder coated steel hatch
Spring opening.
Fitted with a foam seal for dust and water protection.

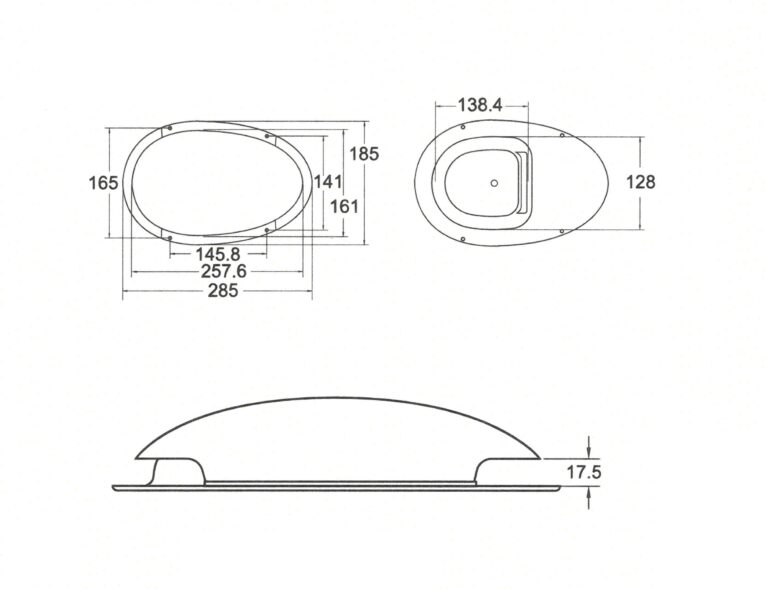

| MULLER VENT | |
| Part No | AL0836 |
| Material | White PVC |
Muller vents.
As air passes through the vent it creates a vacuum and draws the air from the inside-out. Perfect for any Van, Bus, Caravan, Truck, Trailer or Float.
The low profile aerodynamic design protrudes only 50mm above the roof.
Simple to install. Cut a 120mm hole and place the vent over the top with the larger end of the teardrop shape facing forward. For a weather proof seal we suggest using some adhesive sealant or silicone. Then secure with rivets or screws.
| Rogue V3 Front Mount Canopy Air Vent with filter | |
| Part No | AL01164 |
| Material | Aluminium External Plates – Raw Aluminium finish. Internal filter housing – Injection Molded plastic. |
| Weight | 700g |
| External dimensions | 200mm x 157mm x 13mm high |
| Internal dimensions | 200mm x 120mm x 20mm deep. |
| Hole/cutout size | 148mm x 98mm |
| Replacement filter. | P/No AL01166 = pack of 2 |
The Rogue Front Mount Canopy Air Vents are a low profile, universal bolt-on vent designed to allow clean airflow while restricting dust and water ingress.
The front mount variant is suitable for mounting to the front or back of a canopy, but for better performance it is highly recommended to front mount to increase airflow when traveling. The design is simple but effective, with two externally mounted plates separating out most of the solid objects, dust and water, with air then forced to pass through the filter. The filter (supplied with the vent) is mounted in the new V3 injection molded ABS filter housing that improves both the fit and seal of the filter. The filter can easily be removed for cleaning or replacement.
1 x front mount vent kit consists of: 1 x aluminium intake cover, 1 x aluminium front mount louvered vent plate, 1 x air filter, 1 x injection molded plastic filter housing, Stainless steel fitting hardware.
| Rogue V3 Roof Mount Canopy Air Vent with filter | |
| Part No | AL01165 |
| Material | Aluminium external plates. Textura Black powder coat finish. Internal filter housing – Injection Molded plastic. |
| Weight | 950g |
| External on roof dimensions | 286mm x 165mm x 43mm high |
| Internal dimensions | 200mm x 125mm x 24mm deep. |
| Hole/cutout size | 115mm x 90mm |
| Replacement filter. | P/No AL01166 = pack of 2 |
The Rogue Roof Mount Canopy Air Vents are a universal bolt-on vent designed to allow clean airflow to a canopy while restricting dust and water ingress.
They have an opening on the front and back which allows air to flow in and out and can be positioned on the roof to provide ventilation. The filter (supplied with the vent) is mounted in the new V3 injection molded ABS filter housing that improves both the fit and seal of the filter. The filter can easily be removed for cleaning or replacement.
1 x front mount vent kit consists of: 1 x aluminium vent hood, 1 x air filter, 1 x injection molded plastic filter housing, Stainless steel fitting hardware & paper fitting template.
Note: Roof seal not included. It is recommend to fit using roof sealant.
