T1 VECTOR LOCK

Vector lock T1 – Manual.

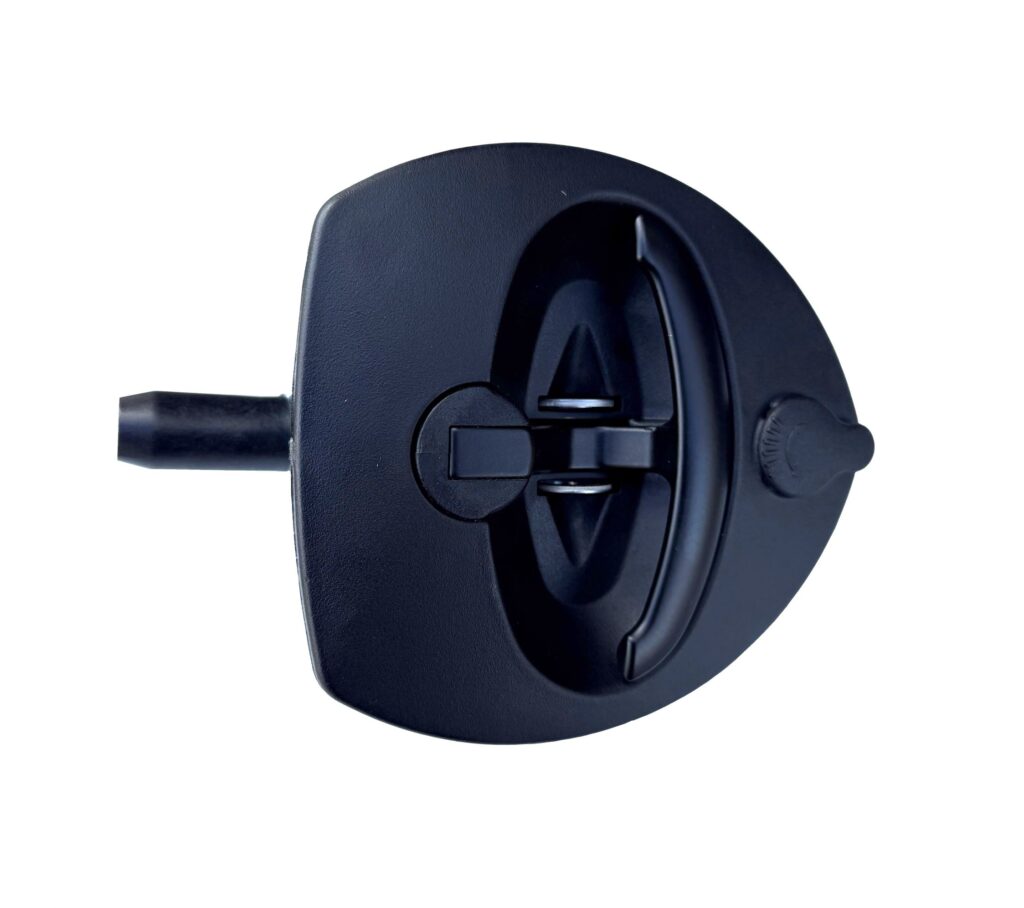

Flush T handle with a 4mm compression stroke. Bolts are are moulded into the housing for mounting with nuts on the inside.

The Vector T-Handle features two independent locking systems, a key-locking cylinder with a concealed locking pin that inserts into the handle and a retractable padlock loop (8mm diam). Both of these prevent the handle from being lifted or turned.

Handle rotation = 180 degrees.

The latch is supplied with an adjustable roller cam and provision for 3 point locking.

– Adjustable cam: Zinc diecast roller cam with glass fiber reinforced polyamide roller.

– Body: Glass fiber reinforced polyamide. (PA6GF30)

– Key dust cover: Glass fiber reinforced polyamide. (PA6GF30)

– Handle: Zinc die cast black texture powder coated.

– Padlock loop: Stainless Steel 304.

– Shaft: Steel, zinc plated.
