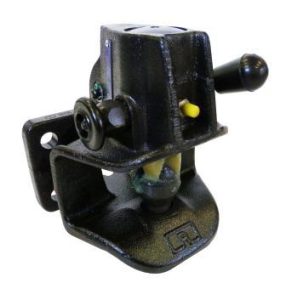

40mm AUTO COUPLING
A compact automatic trailer coupling for light trucks, industrial and agricultural equipment. i.e. fork lifts / grain harvesters.
Suits 40mm diameter tow eyes.
ADR Approved.
PRODUCT SPECS
PRODUCT PHOTOS
| Part number | AL03170 |
| Model | RO243 |
| CRN | 43247 |

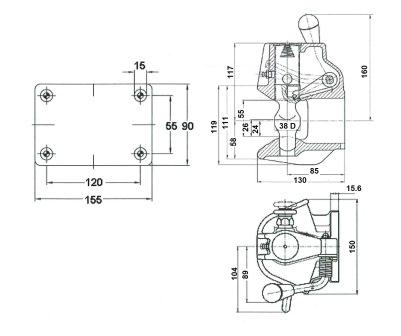

| Funnel size | 100mm x 150mm |
| Mounting holes | 120mm x 55mm -15mm Diam |
| Weight | 4.4 Kg |
| D – value | 30 (kN) |
| Dc – value | 30 (kN) |
| S – value (admissible static vertical load) | 350 (kg) |
| V – value | 12 (kN) |
| ——– | ————- |
| Also for industrial trucks (transport carts, fork lift trucks etc. ) with maximum total weight up to 5t and maximum towed load up to 20t (without vertical load only for inside-factory transport) | |
| Max tow vehicle weight | 5000 (kg) |
| Max tow load without vertical load | 20,000 (kg) |
