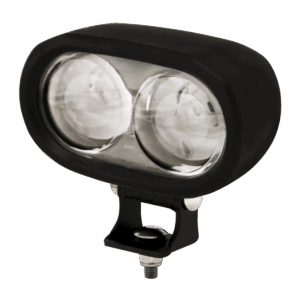

AL00267 – PEDESTRIAN SPOTLIGHT
The EW2002 LED Pedestrian Spotlight is designed specifically for material handling applications to provide a visual warning for pedestrians in the vicinity of mobile equipment. This light is intended to supplement a 360 deg warning light by projecting a blue warning dot onto the ground in front or rear side of the vehicle. This additional safety feature is especially useful where blind corners are present (i.e. warehouse racking) and is likely to be seen by pedestrians who are not looking up or paying close attention to their surroundings.
Extremely resistant to impact and vibration damage.
PRODUCT SPECS
| Part No | AL00267 |
| Model | EW2002B |
| Function | Safety – Pedestrian Spotlight Blue |
| LEDs | 2 x 3 Watt LED’s |
| Approval | R10, UL, IP67, ROHS |
| Draw |
.6A |
| Pattern | Blue spot projection |
| Voltage | 12 – 80 VDC |
| Size | 120mm wide x 68mm Deep x 104mm High |
| Base | Aluminum heatsink housing. 1Bolt mount. |
| Lens | Polycarbonate |
| IP67 | 100% Waterproof/Dust Proof |
