50mm TRAILER COUPLING PARTS
Aline Trading P/L keep a range or parts and accessories to match our range of 50mm trailer couplings.
PRODUCT SPECS
| Part No | Description |
| AL00659 | Override body. CTA-060841 |
| AL03278 | Master cylinder support bracket with brake lever. |
| AL02581 | Override reverse stopper plate. |
| AL03052 | 3/4″ master cylinder complete. |
| AL03254 | 3/4″ master cylinder cap. |
| AL03510 | 7/8″ master cylinder complete. |
| AL00711 | Penrite DOT 3 Brake Fluid. 500ml |
| AL00660 | Safety catch assembly. (Spring, clip & pin) |
| AL00646 | Rattle adjuster bolt and nut. HG couplings. |
| AL03256 | Mechanical coupling adaptor plate. For connecting cable. |
| AL00013 | Coupling bolt hydraulic rear. 4.5″ x .5″ |
| AL00133 | Coupling bolt hydraulic front & mechanical. 4.0″ x .5″ |
| AL00014 | Coupling bolt. 2H,3H + Electric. 1.5″ x .5″ |
| AL03395 | Mechanical brake lever. Marine. 75mm |
| AL03396 | Mechanical brake lever. Marine. 100mm |
PRODUCT PHOTOS
AL00659 Override Body.

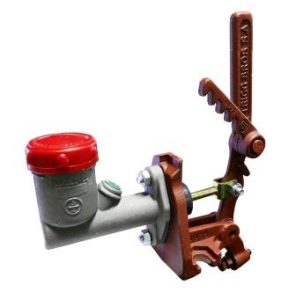

AL03278 – Bracket only. No Master Cylinder. AL03052 – 3/4″ Master cylinder only. AL03254 – Cap only for 3/4″ Master cylinder. ( Shown as assembly)
AL00711 500ml DOT 3 Brake fluid.
AL02581 – Override reverse stopper plate.
AL00660 – Safety catch assembly. ( Spring, Clip & Pin)
AL00646. Rattle adjuster bolt & nut. for HG couplings.

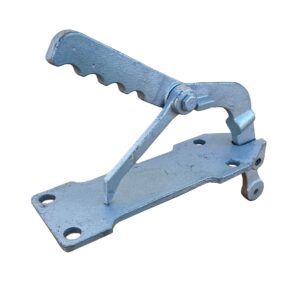

AL03256 – Mechanical coupling adaptor plate.
AL03395 – Mechanical brake lever. Marine 75mm.
