SPRING PACKS AND SPARE PARTS
Aline Trading Pty Ltd stock a range of spring packs and associated parts for maintaining your trailer suspension.
Note: For complete suspension kits please refer to the trailer spring kits section.
PRODUCT SPECS & PHOTOS
| SPRINGS | |||||
| Part No | Style | Width | Length | Leaves | Capacity |
| AL00011 | Eye – Eye | 45mm | 705mm | 6 | 400 kg |
| AL00012 | 7 | 500 kg | |||

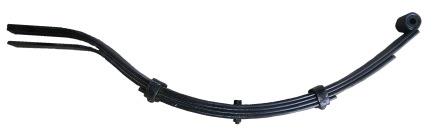

| AL00066 | Slipper | 45mm | 762 mm | 3 | 280 kg |
| AL00067 | 4 | 370 kg | |||
| AL00068 | 5 | 460 kg | |||
| AL00069 | 6 | 550 kg | |||
| AL00070 | 7 | 650 kg | |||
| AL00009 | 9 | 830 kg | |||
| AL00071 | Slipper |
60mm |
762mm |
5 | 575 kg |
| AL00072 | 6 | 700 kg | |||
| AL00061 | 7 | 785 kg | |||
| AL02850 | 9 | 1000 kg | |||
| AL00063 | Eye-Eye |
60mm | 685mm | 5 | 640 kg |
| AL00064 | 6 | 760 kg | |||
| AL00065 | 7 | 890 kg | |||
| AL01137 |
Roller Rocker Centred |
60mm |
695mm |
7 | 750 kg |
| AL01138 | 8 | 1000 kg | |||
| AL01139 | 9 | 1250 kg | |||
| AL01131 |
Roller Rocker Offset
|
60mm |
695mm Short offset – 310mm |
6 | 625kg |
| AL01132 |
695mm Long offset – 410mm |
6 | 625kg | ||
| AL01133 |
695mm Short offset – 310mm |
7 | 750kg | ||
| AL01134 |
695mm Long offset – 410mm |
7 | 750kg | ||
| AL01135 |
695mm Short offset – 310mm |
8 | 1000kg | ||
| AL01136 |
695mm Long offset – 410mm |
8 | 1000kg | ||
| SPRING HANGERS |
||
| Part No | Description | Fits |
| AL03304 | Rear Hanger | 45mm Eye-Slipper |
| AL03303 | Front Hanger | 45mm Eye-Slipper |
| AL03305 | Front Hanger – Deep | 45mm Eye-Slipper Tandem |
| AL03302 | Front Hanger | 60mm Eye-Slipper |
| AL03306 | Front Hanger – Deep | 60mm Eye-Eye Tandem |
| AL03307 | Rear Hanger | 60mm Eye Slipper |
| AL03293 | Rear Hanger-Dead Eye | 60mm Eye-Eye |

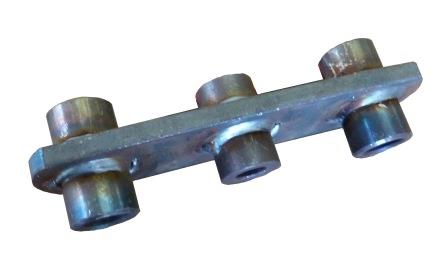

| AL03297 | Centre Hanger 2pce | 60mm Tandem Rocker |
| AL00053 | Front/Rear Hanger | 60mm Roller Rocker Tandem |
| AL00054 | Centre Hanger | 60mm Roller Rocker Tandem |
| ROCKER ARMS |
||
| Part No | Description | Fits |
| AL03296 | Fabricated | 60mm Rocker Tandem |
| AL03413 | Cast Beam | 60mm Roller Rocker Tandem |
| AL03294 | Steel Roller | 60mm Roller Rocker Tandem |
| SHACKLE PLATES | |
| Part No | Description |
| AL00039 | Suits 1/2″ bolts. Centres = 63mm |
| AL00040 | Suits 5/8″ bolts. Centres = 78mm |
| SHACKLE BOLTS | |
| Part No | Description |

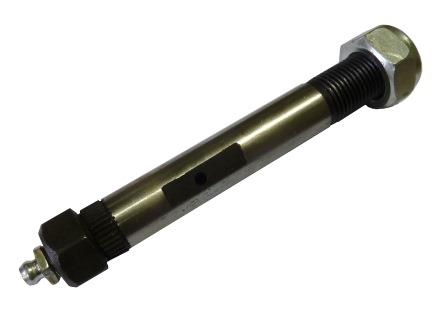

| AL00041 | Bolt & Nut 4″ x 5/8″ Greaser. Suits 60mm springs. |
| AL00056 | Bolt & Nut 41/2″ x 5/8″ Non greased. Suits 60mm springs. |
| AL00055 | Bolt & Nut 31/2″ x 1/2″ Non greased. Suits 45mm springs. |
| AL00038 | Bolt & Nut 31/4″ x 3/4″ Greaser for rocker roller centre bracket. |

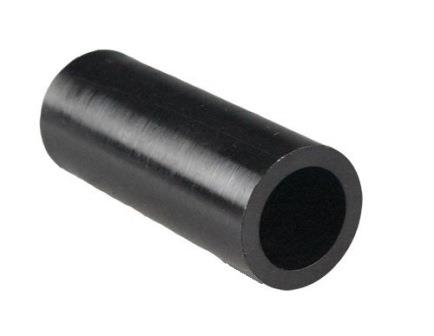

| SPRING BUSHES – NYLON | |
| Part No | Description |
| AL00058 | 1/2″ x 13/4″ suits 45mm springs. |
| AL00130 | 9/16″ x 13/4″ suits 45mm springs. |
| AL00057 | 5/8″ x 21/4″ suits 60mm springs. |
