TRAILER SAFETY CHAINS, HOOKS & FITTINGS.

Aline Trading stock a range of compliant trailer safety chains, D Shackles and vehicle safety chain hooks to suit light trailers and caravans.



PRODUCT SPECS & PHOTOS

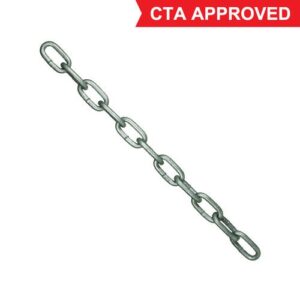

Long link vehicle safety chains. AS4177 compliant.

Part NoDiameter, links, O/A LengthCTA Trailer ATM
 AL000308mm x 13 links  – 550mm CTA-061050 Up to 1600kg
AL0002010mm x 11 links – 620mmCTA-060491601kg – 2500kg
AL0001913mm x 10 links – 605mmCTA-0610482501kg – 3500kg

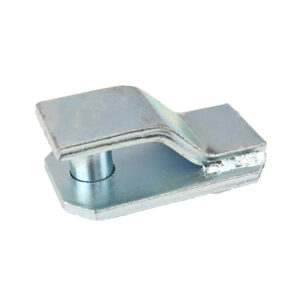

Drawbar Chain mounting bracket.

(2 required per trailer)

Part No: AL02013

This Draw Bar Chain Mount Bracket is a highly durable and reliable weld-on bracket to attach the safety chain to the trailer draw bar, often with the aid of a hammerlock chain connector. Its zinc finish provides an added level of protection to help prevent corrosion of the bracket.

ADR approved & tested to 4.5T

CTA No: CTA-061328

Base Plate: 122.5mm x 72mm x 6mm

O/A height: 38mm

Pin Diameter: 20mm

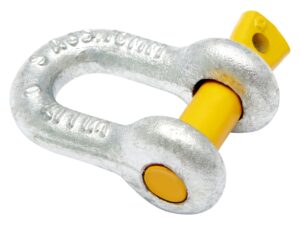

D Shackles.
Complient with AS2741
Part NoRating per shackle.Size
AL000311000kg

10mm

AL000182000kg

12mm

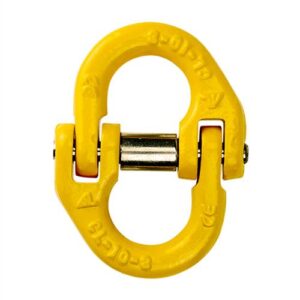

Chain Connector.    (Hammer Lock)
Class G80
Part NoWLL per connectorSize
AL020142000 kg

8mm

AL020153200 kg

10mm

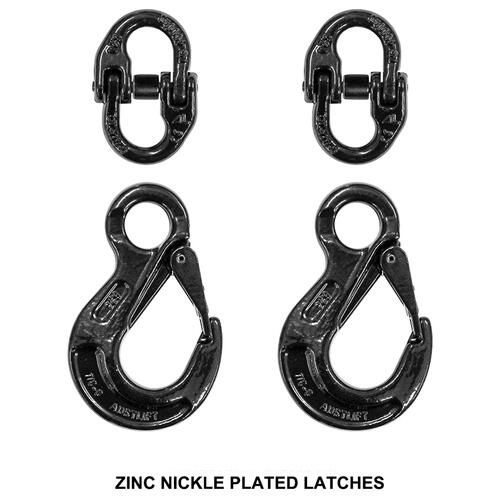

G80 Vehicle chain safety hook set.
Kit includes 2 x hooks + 2 x hammerlocks.
Fully Government CTA approved for towing in all states.
Easy to install, easy to use, safe and fully legal.
Attaches to your vehicle tow bar.
Tested over 20000 times.

NOW SUPPLIED WITH BLACK FINISH TO BLEND IN WITH YOUR TOW BAR!

Part NoTrailer ATMCTA Suitable Trailer Chain
AL020102000kgCTA-0613038mm
AL020084000kgCTA-06130510/13mm

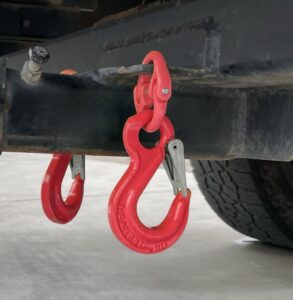

G100 Vehicle chain safety hook set.

For heavier trailers.

Kit includes 2 x hooks + 2 x hammerlocks.
Easy to install, easy to use, safe and fully legal.
Attaches to your vehicle tow bar.                                                                                                                                                                                                                            Tested over 20000 times.

 SUPPLIED WITH ROSE RED FINISH.

Note: Same physical size as the 4.0t G80 hooks.                                                                                                                                                                                                                                         After 13mm Grade 30 trailer chains, a non-galvanised Grade 80 or Grade 100 chain must be used.
Part No Trailer ATM Certification Suitable Trailer Chain
AL02017 5000kg AS/NZS 4177.4 10/12mm

MAWBY hook kit.
Kit includes 2 x hooks + 2 x couplings.

Attaches to your trailer chains.
Drop Forged Steel.
Compliant and legal on all Australian Roads.

Part NoTrailer ATMAustralian Standard.
AL020123500kg

AS4177.4

The Mawby Hook is a quick action trailer safety chain coupling device suitable for chain links up to 13mm in diameter.
Designed for use on trailers up to 3.5 tonnes Aggregate Trailer Mass. (ATM)

The Mawby Hook is fully tested and provides a safe and secure connection between the vehicle and trailer/caravan up to 3.5 tonnes Aggregate Trailer Mass.
The product has been independently tested and complies with the Australian Standard AS 4177.4 – 2004 (Caravan and Light Trailer Towing Components – Safety Chains to 3,500kg capacity).
The product is not a lifting device – it is a chain connection device and is not required to comply with other Australian Standards dealing with lifting devices.
The shackle is compatible with safety chains used on vehicles towing less than 3.5 tonnes ATM and has identification marks so that it can be traced back to the manufacturer as required by circular 0-1-3 Safety Chain Connection devices for road trailers which are up to 3.5 tonnes ATM – Issued by the Administrator of Vehicle Standards in consultation with the Australian Motor Vehicle Certification Board.
