U BOLTS – FISH PLATES – AXLE SADDLES
The U bolts and fish plates listed below are designed to suit most common trailer axle and spring sets.
U bolts are supplied with spring washers and nuts or Nyloc nuts depending on the size / design.
PRODUCT SPECS & PHOTOS

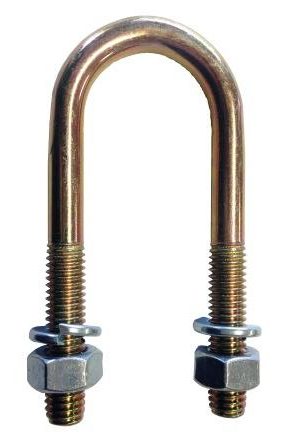

| U Bolts – Round | |||
| Part No | Axle Size | Length | Diameter |
| AL03313 | 39mm | 115mm | 1/2″ |
| AL03291 | 39mm | 125mm | 1/2″ |
| AL02815 | 39mm | 137mm | 1/2″ |
| AL00047 | 45mm | 113mm | 1/2″ |
| AL00643 | 45mm | 125 | 1/2″ |
| AL00642 | 50mm | 113mm | 1/2″ |
| AL00062 | 50mm | 140mm | 1/2″ |
| AL00073 | 60mm | 150mm | 1/2″ |
| AL02813 | 65mm | 165mm | 5/8″ |

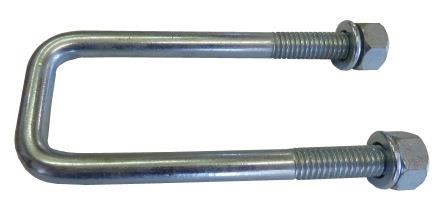

| U Bolts – Square | |||
| Part No | Axle Size | Length | Diameter |
| AL00048 | 40mm | 113mm | 1/2″ |
| AL00016 | 40mm | 125mm | 1/2″ |
| AL00049 | 40mm | 137mm | 1/2″ |
| AL00022 | 45mm | 113mm | 1/2″ |
| AL03143 | 45mm | 125mm | 1/2″ |
| AL00045 | 45mm | 140mm | 1/2″ |
| AL02814 | 45mm | 150mm | 5/8″ |
| AL00021 | 50mm | 113mm | 1/2″ |
| AL00017 | 50mm | 125mm | 1/2″ |
| AL02816 | 50mm | 137mm | 1/2″ |
| AL02811 | 50mm | 152mm | 5/8″ |
| AL00656 | 50mm | 177 | 5/8″ HT |
| AL02812 | 63mm | 177mm | 5/8″ HT |
| Fish Plates | ||
| Part No | Spring Width | U Bolt Size |

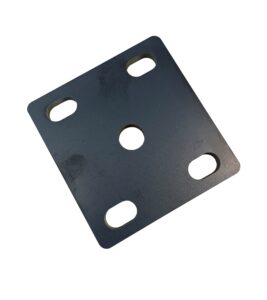

| AL03142 | 45-60mm | 39mm – 50mm x 1/2″ Universal fitment. |
| AL03208 | 45mm | 60mm x 1/2″ Round. |
| AL01680 | 60mm | 40mm x 1/2″ |
| AL03141 | 60mm | 45mm x 1/2″ |
| AL03292 | 60mm | 50mm x 1/2″ |
| AL02810 | 60mm | 45 – 50mm x 5/8″ Universal Fitment. |
| AL03416 | 60mm | 63 – 65mm x 5/8″ |

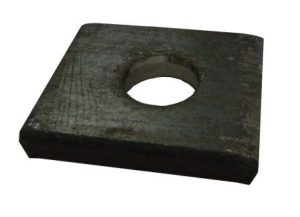

| Axle Saddle Plate – Universal fit |
||
| Part No | Description | |
| AL03295 | 40 X 8 X 48 – 17mm HOLE |
|
