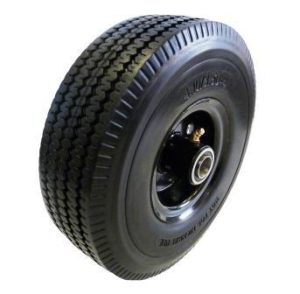

4.10/3.50 x 4
The Heavy Duty 4.10/3.50-4 air free tyre and wheel assemblies are designed for use on most standard sack trucks and other applications involving cyclic loads.
PRODUCT SPECS
| Part No | Bearing Diameter | Hub Width |
| AL02734 | 1/2″ | 57mm offset |
| AL02735 | 5/8″ | 57mm offset |
| AL02737 | 3/4″ | 57mm offset |
| AL02738 | 3/4″ 2pce wheel | 57mm offset |
| AL02739 | 5/8″ | 97mm centered |
| AL02761 | 3/4″ | 97mm centered |
| Diameter | 260mm |
| Section Width | 81mm |
| Capacity | 120kg |
| Bearings | 1/2″ – 5/8″ or 3/4″ H/Speed |
| Centre Hub | 57mm offset or 97mm centred |
