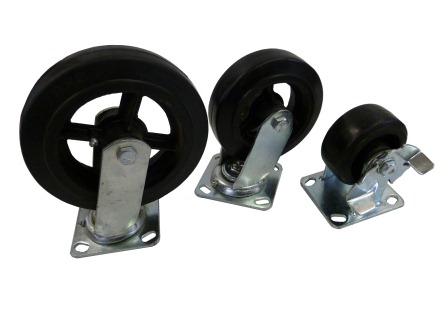

SOLID INDUSTRIAL CASTORS. CAST IRON & RUBBER WHEELS.
These heavy duty castors are suitable for use in industrial and agricultural applications.
Features:
– Cast iron, greaseable wheels.
– Rubber mold on solid tyres.
– Solid zinc plated steel frames.
– Roller bearing.
- Weld on mounting plates available. See bottom of page.
PRODUCT SPECS
| Swivel Castor – Unbraked | ||||
| Part Number | Size | Capacity | Height | Offset |
| AL02837 | 100 x 50 | 130kg | 135 | 20 |
| AL02829 | 150 x 50 | 230kg | 189 | 36 |
| AL02833 | 200 x 50 | 280kg | 235 | 39.5 |
| Swivel Castor – Braked | ||||
| Part Number | Size |
Capacity | Height | Offset |
| AL02838 | 100 x 50 | 130kg | 135 | 20 |
| AL02830 | 150 x 50 |
230kg | 189 | 36 |
| AL02834 | 200 x 50 |
280kg | 235 | 39.5 |
| Fixed Castor – Unbraked |
||||
| Part Number |
Size |
Capacity | Height | Offset |
| AL02835 | 100 x 50 |
130kg | 135 | 0 |
| AL02827 | 150 x 50 |
230kg | 189 | 0 |
| AL02831 | 200 x 50 |
280kg | 235 | 0 |
| Fixed Castor – Braked | ||||
| Part Number | Size “ | Capacity | Height | Offset |
| AL2836 | 100 x 50 | 130kg | 135 | 0 |
| AL02828 | 150 x 50 | 230kg | 189 | 0 |
| AL02832 | 200 x 50 | 280kg | 235 | 0 |

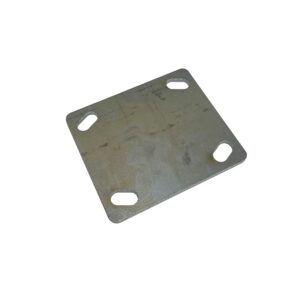

Weld on mounting plate. Suits 100mm, 150mm & 200mm castors in this section. | ||||
| Part Number | Plate Size | Hole pattern. | Hole size | Weight |
| AL02741 | 115 x 100 x 5 | 85 x 73 | 20 x 11 | 0.4 kg |
